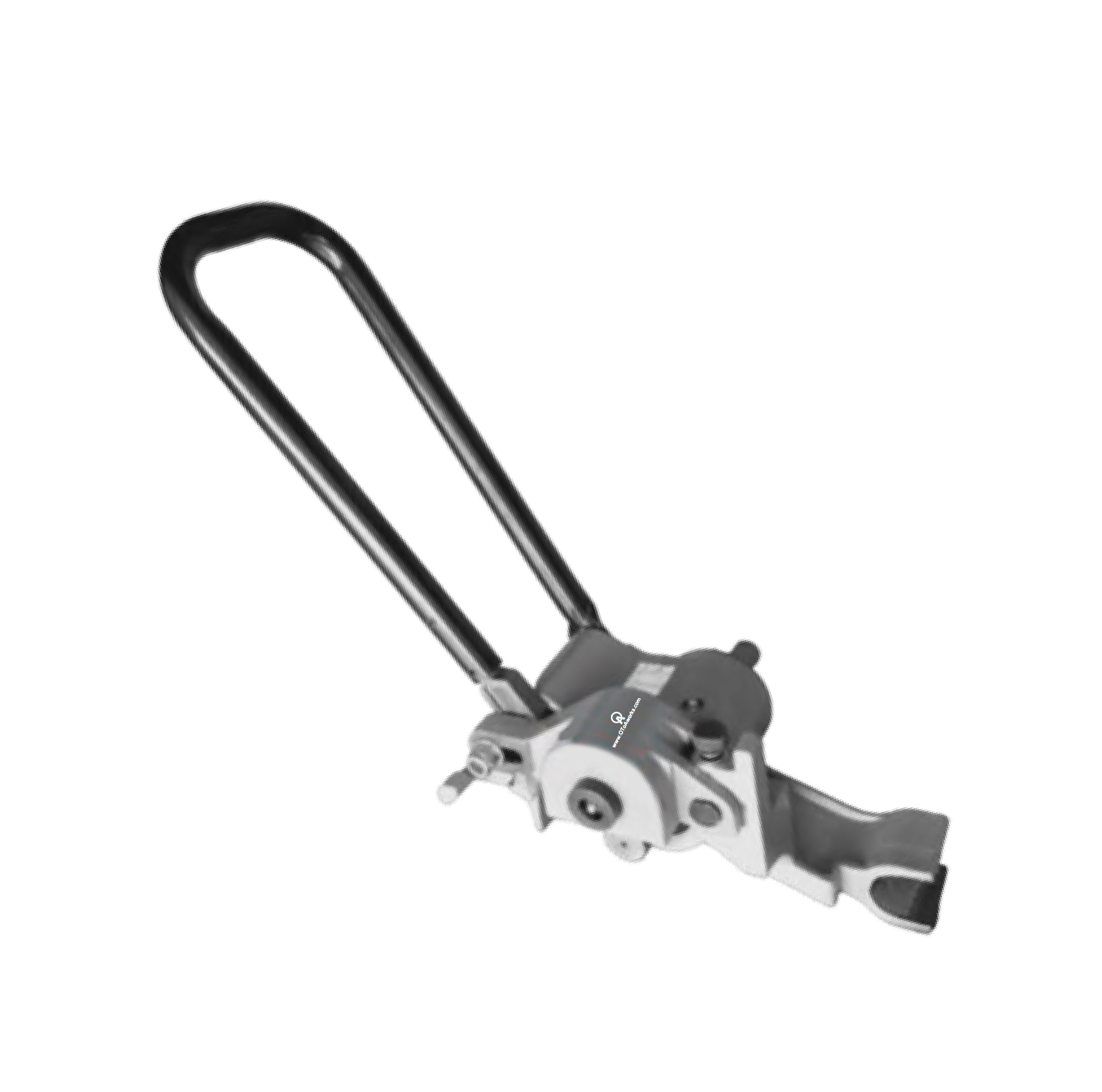

The Model PGMC99 Roll Groover is the most durable and efficient light weight (17kgs) portable grooving unit for easy transportation. Built with a solid, durable cast-iron housing for heavy usage. The PGMC99 features a single stroke feed mechanism that allows for accurate operation effortlessly. PGMC99 can be mounted on Otoaworks "PTMF33 and PTMF44" or optionally be used in *Ridgid.

Capacity: 11/4"-6 RGTM1 steel, stainless steel.

11/4-3" RGTM2 steel, stainless steel.

Standard dies: One 11/4-6" Roll Groove Set.

(11/4"-6RGTM1    11/4"-3"RGTM2)

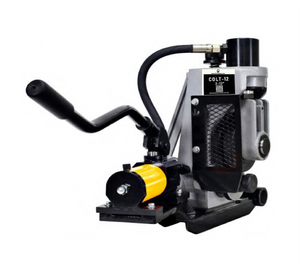

The Model PGMC99-N  Hydraulic Roll Groover Built with powerful 15-ton hydraulic ram, compact and easy to transport, One man setup and operatio, the PGMC99-N is the ideal groover for work site. Designed to provide maximum efficiency, the PGMC99-N is capable of grooving up to 12"RGTM1 and 8"RGTM2 standard wall pipes. Roll set changeout is accomplished in seconds.

The PGMC99-G mounts quickly to Otoaworks PTMF55

Or optionally can be used in *Ridgid machines.

Technical Specifications

Capacity: 2"-12"RGTM1 steel, stainless steel

2-8 Sch. 40 steel, stainless steel

Weight: 53kg

Standard dies:

One 2"-6"RGTM1/2 Roll Set

One 8-12" RGTM1 (8RGTM2) Roll Set
